Vibration screw conveyor PE PP particles , cooling vertical vibrating spiral elevator conveyor

Product Description

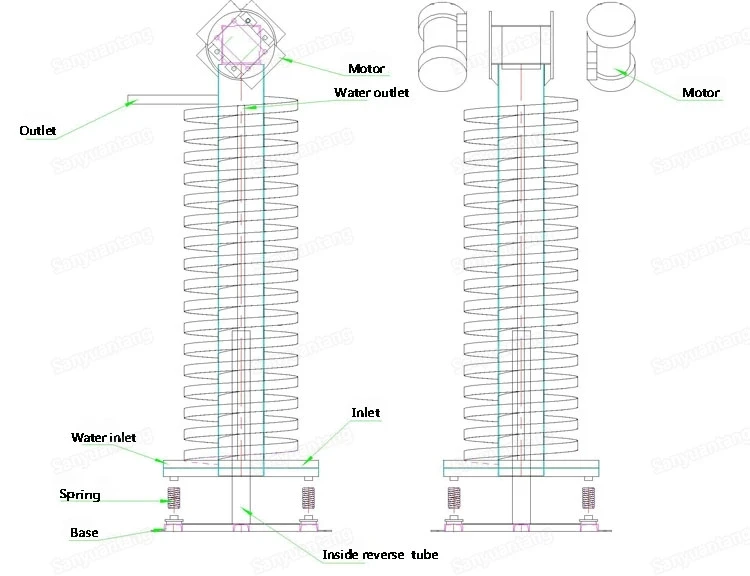

 Vibrating spiral conveyor also called as vertical vibrating conveyor,spiral elevator conveyor,can lift bulk material,powder,granules,pellet,tablet vertically up to 25 ft and need only very small floor space.Material is conveyed upward or downward under the action of two vibrators mounted in opposite directions. There are no bearings or internal moving parts to degrade material.
Other functions can be realized by tailor-made service e.g heating,cooling,drying, spreading etc

vertical spiral conveyor

Application of Vertical Spiral Vibrating Conveyor
Food industry:sugar powder,starch,milk powder,egg powder,rice powder,food additive,seasoning,spice etc.
Chemical industry:fertilizer,detergent powder,sodium carbonate,talcum powder,dyestuff,rubber,PVC resin,pigment,cosmetics,coatings,Chinese medicine powder,fiber etc.
Metal, metallurgy industry:copper powder,nickle powder,aluminum powder,copper granule,ore alloy powder,welding powder,battery material, abrasive powder, fire-proof material etc.

vibrating spiral conveyor


Technical Parameters



 Main Technical Parameter

Model

Diameter of Spiral chute(mm)

Lifting height(m)

Speed(r/min)

Double amplitude(mm)

Power(kw)

DZC300

300

≤4.0











960

6-8

2*0.4

DZC500

500

≤6.0

6-8

2*0.75

DZC600

600

≤8.0

6-8

2*1.5

DZC800

800

≤8.0

6-8

2*2.2

DZC900

900

≤8.0

6-8

2*3.0

DZC1200

1200

≤8.0

6-8

2*4.5

DZC1500

1500

≤8.0

6-8

2*5.5

DZC1800

1800

≤8.0

6-8

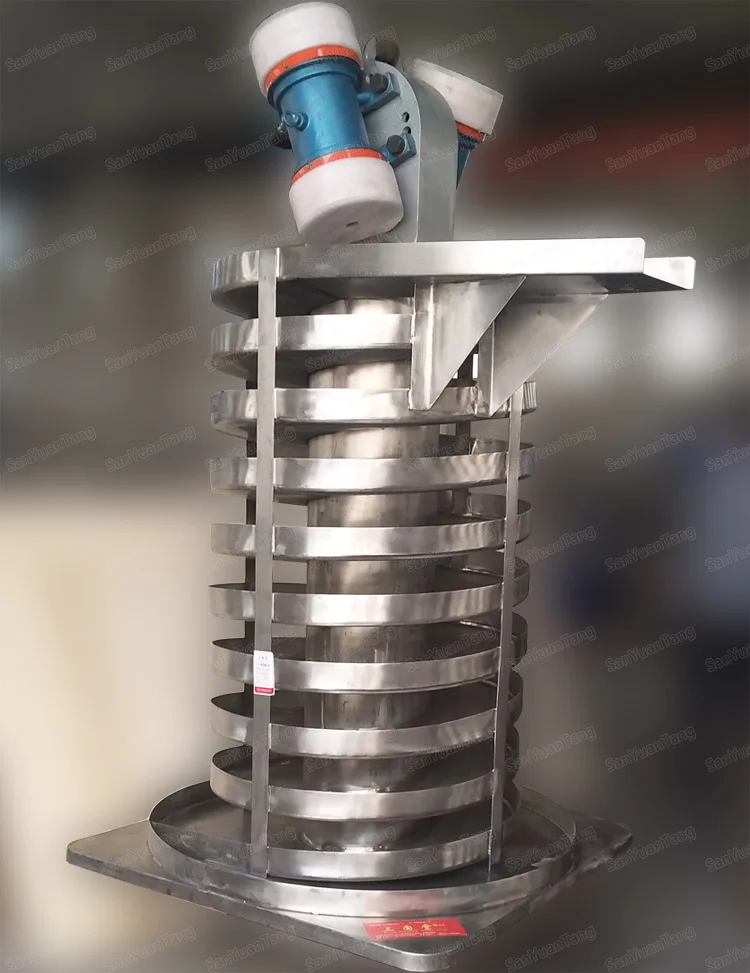

 cooling vertical vibrating spiral elevator conveyor

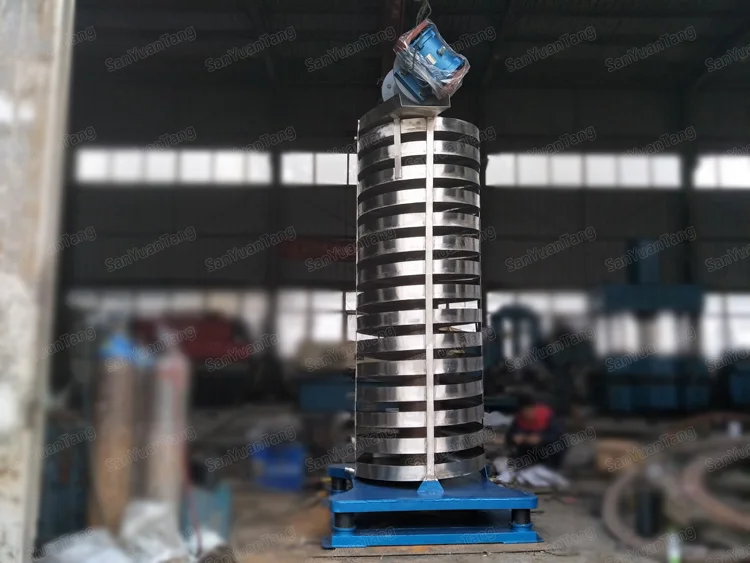

Photos

 cooling vertical vibrating spiral elevator conveyorvibrating conveyor 1

 cooling vertical vibrating spiral elevator conveyor

Features

 1.Easy installation,low noise
2.Maintenance-free (no lubrication or regular inspection necessary)
3.Spiral diameter range from 500mm to 1500mm
4.Motors mounted on top or bottom available
5.Minimum floor space required
6.Cooling,heating and dust covering on request

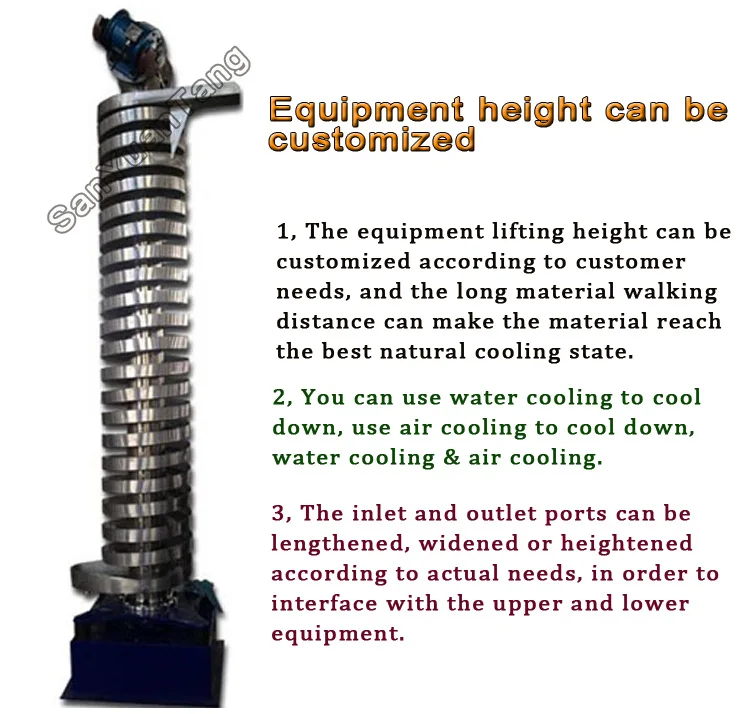

7.High temperature design available
Buying Guides

How could you choose suitable one? Please answer the following questions.

Raw material:                  ;                 kg/m³

The size of raw material:

Capacity:_____t/h

Do you need cooling funcation?


Contact me

Please contact me for more about vibration spiral elevator

750-3


Price

  • Delivery Port : shanghai,tianjin,qingdao

Packaging & Delivery

  • Packing :WOODEN CASE
  • Delivery Lead Time : 15 days after recieving payment
  • Supply Ability : 8 sets per month
