Rotary Sieve Machine for Granules Separate Vibrating Screen

Contact Now* Send an Inquiry to this supplier.
or
Start Order * Name your price

Browse by Category

Contact us

Xinxiang Sanyuantang Machine Co.,Ltd
[China]

Address
No.811, Qingnian Road, Qiliying Town Xinxiang Henan
Phone
86-182-38753173
Contact name
Amy Yin

Quick Information

  • Brand Name: SANYUANTANG
  • Place of Origin: China
  • Model Number : SYXZS

Description

Rotary Sieve Machine for Granules Separate Vibrating Screen

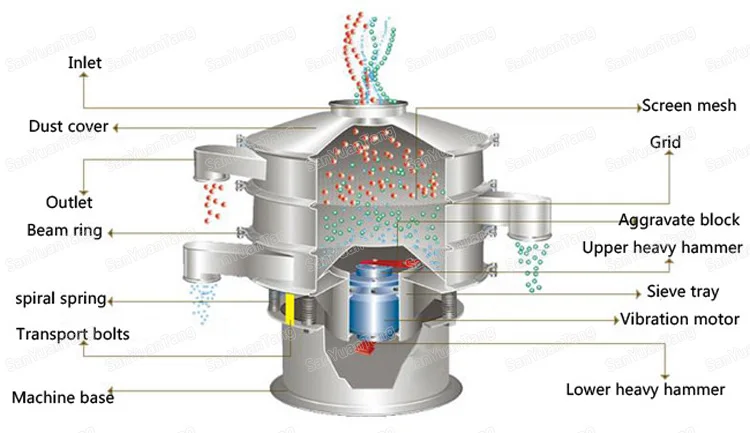

Product Description of rotary vibrating sieve

Electric Power Supply :
110V--480V Available ,
50HZ / 60HZ
Single phase / Three phase

The XZS series rotary vibrating screen sepatator is used for materials screening /sieving /sorting /grading /classifying /filtering /separating.
rotary vibrating sieve.jpg
Totally electronic automatic ,suitable for screening fine powders and granules ,separate materials to different size fractions.
Also used for liquid filtering /purifying .

This ratory vibrating screen machine can be single deck or multi decks , with different mesh size for each deck (mesh size can be 2 -300 mesh). screen diameter can be 400mm ,450mm, 500mm, 600mm ,800mm, 1000mm,1200mm,1500mm and 1800mm as per different process capacity requirement . widely used for food , chemical , mineral industries etc.

wheatgrass juice powder vibrating screen sifter machine

 Variety Functions Of Starch Industry Stainless Steel Rotary Vibrating Screen / Vibrating Sieve.
1. Grading
The multi—layer type vibration sand screen can screen and separate five groups of different particles at a time. It is suitable for dry materials.
2. Remove the impurity
The vibration sand screen can quickly separate a few oversize or undersized particles from a quantity of materials.
3. Solid-liquid separation
Removal of solids from mixture liquids and slurry.


Technical Parameters



Model Layer Granularity
      (mm)
Net Specification Effective Diameter
         (mm)
Power(kw)
SY-XZS400 1-4 <20  3-500mesh 380 0.25
SY-XZS600 1-4 <20  3-500mesh 600 0.55
SY-XZS800 1-4 <30  3-500mesh 750 0.75
SY-XZS1000 1-4 <30  3-500mesh 900 1.1
SY-XZS1200 1-4 <30  3-500mesh 1100 1.5
SY-XZS1500 1-4 <50  3-500mesh 1450 2.2
SY-XZS1800 1-4 <50  3-500mesh 1750 3.0




Features



vibrating screen sifter machine

Combination of cost and processing requirements , there are different materials for selection:
1). full stainless steel ;   2).contact part stainless steel ;   3). full carbon steel

vibrating filter machine


Photos

 stainess steel vibrating screen

vibrating filter machine

vibrating sieve 8.jpg

Application site

Vibrating Screener
Chemical industry:resin,coating,industrial drug, cosmetics,paint,and so on
Food industry:sugar powder,starch,salt,rice flou,milk powder,soya-bean milk,egg powder, soy souce,fruit juice.
Metal metallurgy mining:aluminium powder, lead powder,copper powder,ore,alloyed powder,kaolin,lime, quartz sand and so on.
Polltion treatment:waste oil,wasre water,dyeing waste water,auxilliaries ,activaated carbon and so on

Contact me

6501


Price

  • Delivery Port : Shanghai,Qingdao

Packaging & Delivery

  • Packing :1 set per wooden case
  • Packaging Size : 104 x 144 x 150  Centimeters
  • Package Weight : 280
  • Delivery Lead Time : 7 days after recieving payment
  • Supply Ability : 50 sets per month
