Quick Information

  • Brand Name: SANYUANTANG
  • Place of Origin: China
  • Model Number : syz

Description

Rectangular Vibrating Screen Sieve for Powder
Product Description

The linear vibrating screen is fully enclosed structure, no dust, auto-nesting, etc., is more suitable for pipeline operations within 24 hours;

The linear vibrating screen has a low energy consumption, high output, simple structure, easy maintenance;

sand sieve machine



Technical Parameters——Linear Vibrating Screen

Model SYZ-520 SYZ-525 SYZ-530 SYZ-1020 SYZ-1025 SYZ-1030 SYZ-1225
Dimension (mm) 500×2000 500×2500 500×3000 1000×2000 1000×2500 1000×3000 1200×2500
Material  diameter (mm) 0.074-20 0.074-20 0.074-20 0.074-40 0.074-40 0.074-40 0.074-40
 Shake  frequency(time/min) 960 960 960 960 960 960 960
Gradient 1-7 1-7 1-7 1-7 1-7 1-7 1-7
Amplitude 1-4.5 1-4.5 1-4.5 1-4.5 1-4.5 1-4.5 1-4.5
The layer number 1-6 1-6 1-6 1-6 1-6 11-6 1-6
Power(kw) 2×(0.37-0.75) 2×(0.37-0.75) 2×(0.37-0.75) 2×(0.75-1.1) 2×(0.75-1.5) 2×(0.75-1.5) 2×(0.75-1.5)

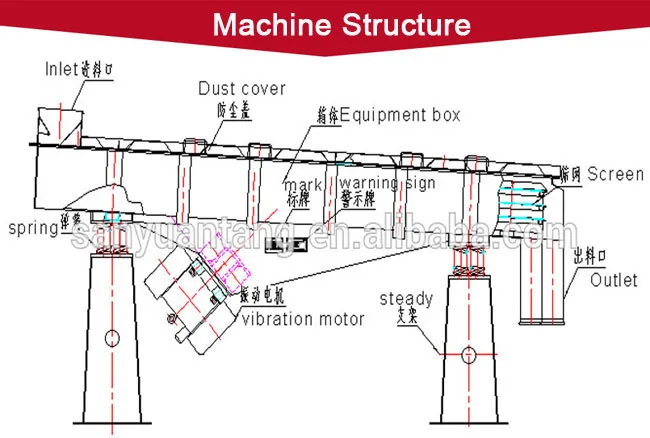

 Working  Principle——Linear Vibrating Screen

Linear Vibrating Screen use excellent vibrating motor as power source,that the materials can be thrown up on the sieve and forward to make a straight movement. It can be equipped with single or multi-screen to achieve the grading, removing impurity, removing dust, testing, washing selecting, dehydration etc.

linear vibrating sieve

separator machine for sand

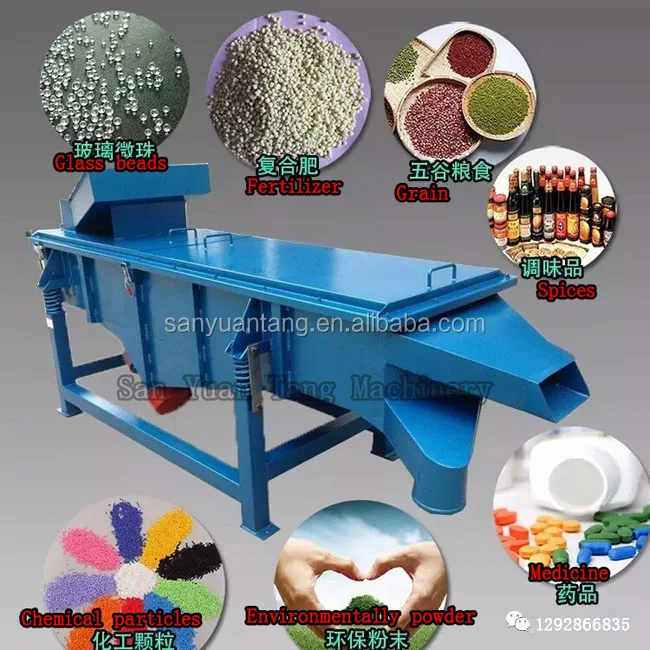

Application

It is suitable for any dry material screening from 0.74mm-5mm., the largest particle size is 10mm.It is widely used in chemical, food, plastics, pharmaceuticals, metallurgy, glass, building materials, food, fertilizers, abrasives, ceramics and other industries.
1) Chemical industry: resin pigment, medicine, grease, paint, palette, etc.
2) Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry, etc.
3) Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.
4) Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.
5) Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.
6) Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder, etc.

separator machine for sand
FAQ
How to choose a machine?
a: Customers who are familiar with technical performance and parameters can directly order.
Note: You had better send us the pictures you have ever used.
b: Customers who need us to choose the models, please follow the information, tell us:
Name and feature of the raw material?
Aim of using: get rid of impurity, filtration, grading?
Handling capacity: kg /h, L/h
The raw material size: (mesh or mm)
How many final materials you want, or how many layer you need?
Note: You had better send us the relevant pictures about the details.
2.How many kinds of material are supported?
All stainless steel (304, 316L)
All carbon steel Q235
Contact part Stainless steel
3.Is it special requirement available?
Packaging & Delivery:
Wooden case or as your payment
20 days after receipt of your require
This machine also could be customized by clients' specific production line requirement.
