Laboratory Mini Vibrating Screen Test Separator Analysis Sieve Machine

Contact Now* Send an Inquiry to this supplier.
or
Start Order * Name your price

Browse by Category

Contact us

Xinxiang Sanyuantang Machine Co.,Ltd
[China]

Address
No.811, Qingnian Road, Qiliying Town Xinxiang Henan
Phone
86-182-38753173
Contact name
Amy Yin

Quick Information

  • Brand Name: sanyuantang
  • Place of Origin: China
  • Model Number : SY300
  • Diameter : 200mm

Description

Laboratory mini vibrating screen test separator analysis sieve machine

Features-lab test sieve shaker

lab sieve for granulation working video,visit to https://youtu.be/2Rekf7Ly3kM

laboratory sieving machine

Product Description

 The standard test sieve is made for the purpose of particles size distribution measurement, the determination of impurity content or solid content in liquid, which are extensively used in scientific laboratories and quality inspection departments.

standard sand test sieve

Structure

 laboratory sieving machine

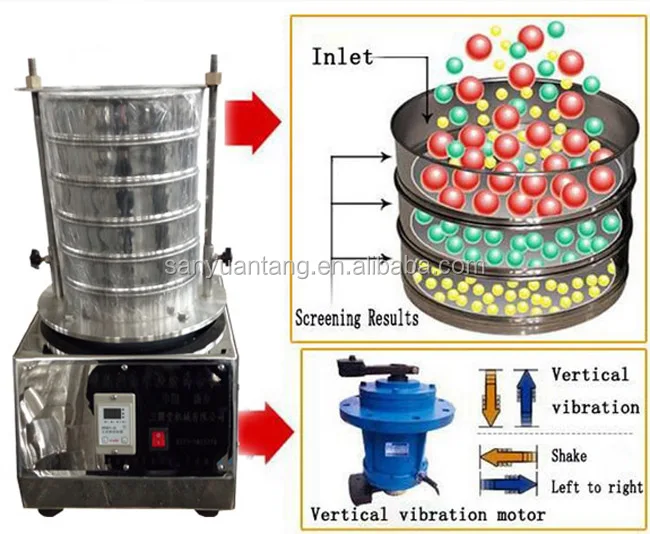

Working schematic

laboratory test sieve




Technical Parameters

 Technical parameter:

Name

Unit

Data

Standard model(SY)

Deck

8

Diameter

mm

φ300φ200φ75

granularity

mm

0.008-5

Noise

dB

≤50

Capacityonce

Kg

≤1

Amplitude

mm

≤5

Motor

Volt

V

220



Rpm

r/min

1420



Power

KW

0.125

Overall size

mm

360×300×736

Weight

Kg

25



Application of test sieve
It applies in the accurate analysis of granularity structures of particle and power materials, and the testing analysis of solid content in liquid for laboratories, quality control rooms and scientific research departments. The testing sieve is widely used in testing analysis of chemical, pharmaceutical, food, building materials, powder metallurgy, and material in the processing process of the sewage and waste water from environmental protection industry.

laboratory test sieve

Chemical industry: resin, pigment, cosmetic, coatings, Chinese medicine powder.
Food industry: sugar powder, starch, salt, milk powder, egg powder, sauce.
Metallurgy: aluminum , copper powder, ore alloy powder, welding rod powder.
Wastewater treatment: disposed oil, disposed dye waste water, active carbon.

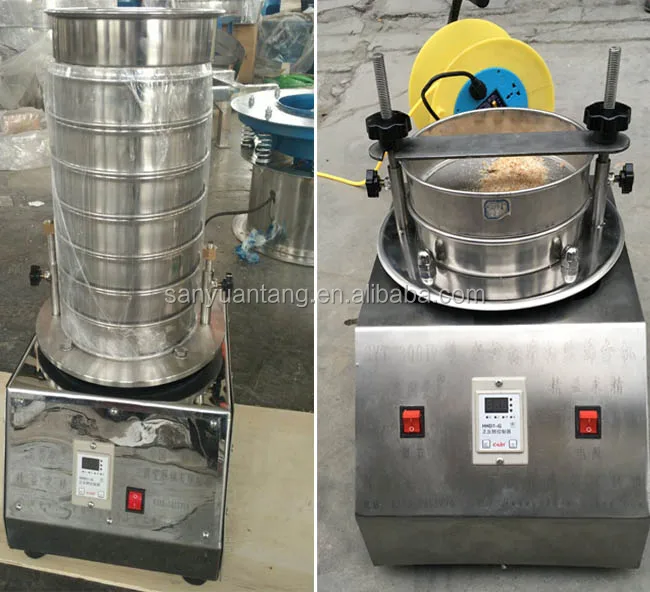

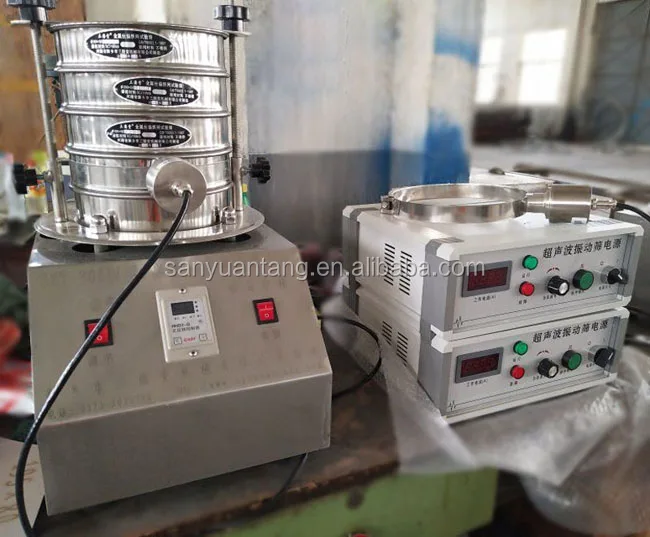

Photos

soil testing sieve

soil testing sieve

standard sand test sieve


Trade Assurance

100% Product quality protection
100% On-time shipment protection
100% Payment protection
The supplier fails to ship your products on time or the product quality does not meet the standards set in your contract, Alibaba.com will refund the covered amount of your payment.


Company Information

      Xinxiang city Sanyuantang Machinery Co.,Ltd, ISO9001 certified enterprise,    specializes in manufacturing series of vibrating screen and vibrating machine and we could design, develop and produce by ourselves.

      At present, the main range of products include kinds of series of Vibrating screens, Vibrating separator-filter,   Ultrasonic vibrating screens, Sifting machines, Filtering machines, Linear vibrating screens, Testing screens, Vibrating conveyers, etc.

        These products are highly suitable to the purpose of screening grains and powders and filtering serous fluids. Other uses include the sifting and sorting dry powders, liquids and solids in industries such as Chemicals, Food processing, Pharmaceuticals, Metallurgy, pigments, Ceramics and Abrasives, etc.  Our products have seven national patents. CE and ISO certification.The quality and technology of our products have reached the international advanced standard.






Buying Guides

How to provide us the detailed need?

1)Material (name) that you want to process, with the density, water content(%).
2)The necessary process quantity (per hour)
3)Material contact part, SS304, SS316L and Q235 for option.
4)The different dimension of the machine can be designed for you.
5)Additional parts, like the Mobil wheel and noise-proof base, can be easily fixed and maintained.


Related suggestion

               24



Contact me for more details...



 6501

Pls write down your inquiry below, and click "Send".
We'll get back to you within 24 HOURS!


Price

  • Delivery Port : Shanghai,Qingdao

Packaging & Delivery

  • Packing :wooden case
  • Packaging Size : 50 x 50 x 65  Centimeters
  • Package Weight : 25  Kilograms
  • Delivery Lead Time : 7 days after recieving payment
