Honey Moisture Removal Machine 0.5 - 1.5 Tons Honey Processing Machine

Contact Now* Send an Inquiry to this supplier.
or
Start Order * Name your price

Browse by Category

Contact us

Xinxiang Sanyuantang Machine Co.,Ltd
[China]

Address
No.811, Qingnian Road, Qiliying Town Xinxiang Henan
Phone
86-182-38753173
Contact name
Amy Yin

Quick Information

  • Brand Name: SANYUANTANG
  • Place of Origin: China
  • Model Number : SYT600
  • Processing : moisture removal machine
  • Processing Types : honey purify machine

Description

Honey Moisture Removal Machine  0.5 - 1.5 Tons Honey Processing Machine

Introduction:

Currently, honey processing machine main used mechanical filters and low-temperature vacuum concentrated to remove impurities and excess water, Get a higher degree of vacuum systems and the reasonable structure of the low temperature evaporation device is the key to the processing technology of bee products. This equipment has fully realized honey enrichment process special requirements, and to meet the aspirations of bee products processing enterprises.

honey processing machine

Honey processing equipment parameters

600 mm diameter

The height to 600 mm

The overall volume of 140 L

The effective volume of 120 L

A single heating tube (preheating tank is 6 kw ,and vacuum concentrator is 9 kw)

Vacuum pump SK - 0.8     voltage 380 v     power 1.5 KW

: preheating tank motor slowdown micromotor voltage 220v  power 180w ratio 25   60r/min

Production capacity:  1.2 to 1.5 t per day

Concentrated temperature: 50 ℃ or less

Vacuum: 0.092 Mpa or less

The maximum total power: 16Kw

Model

FM-400

FM-600

Output

0.5t /8hrs

1.2-1.5t /8hrs

Voltage

220v/380v   3phase

220v/380v   3phase

Power

16kw

16kw

Dimension

1600*500*1555 mm

1750*600*1660 mm

Features

1.This set of Equipment are made of 304 stainless steel, easy to operate, reliable, efficient, vacuum suction honey.

2.They can achieve high vacuum and low concentration temperature is ideal for honey processing equipment.
3.Apparatus comprising: a preheating tank, filter, concentrate tank, a condenser, a vacuum pump.
4.The honey thickener machine can reach high vacuity and lower thickening temperature.
After concentrating the materials will not change color, not change flavor, the quality of materials after concentrating will be very good.
5.Good designed of the structure make the machine small, low noise, easy to operate.

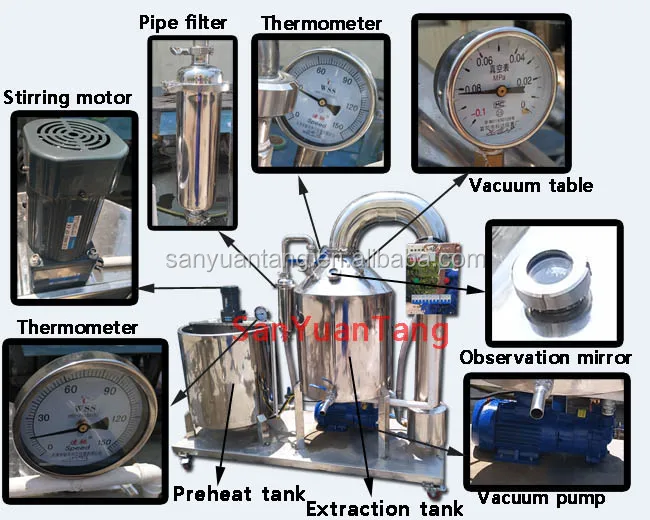

Structural drawing:

beekeeping equipment

1. Thermometer   2. Pipe filter  3. Exhaust port   4. Thermometer  5. Viewing port

6. Vacuum gauge  7. Electric control box  8. Condenser pipe  9. Concentrate tank

10. Water outlet  11. Water outlet   12. Honey outlet  13. Vacuum pump

14. Heater  15. Water outlet  16. Pedestal  17. Heater  18. Preheating tank

19. Filter net  20. Motor

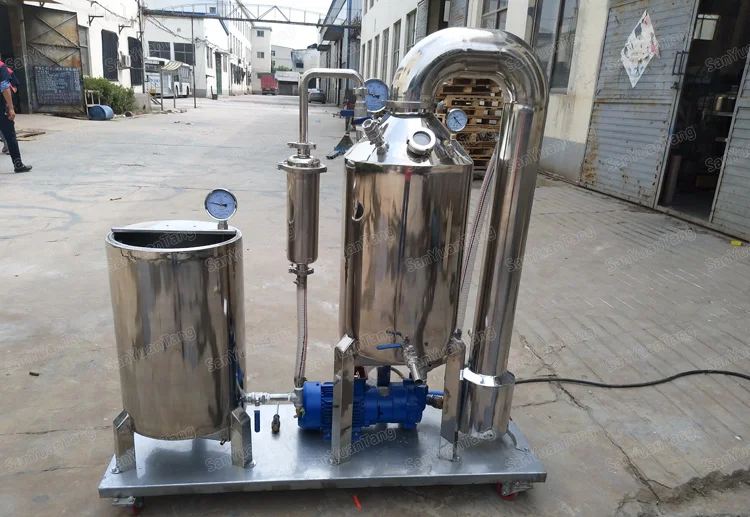

Product pictures

honey machine 1.jpg



honey processing machine
FAQ


Q:What's your after-sales services?
A: 24 hours service online,you can tell your trouble any time.


Q:What is the MOQ of our products?
A:Usually 1 set.

Q:What is the payment terms?
A. Usually use T/T,but Western Union is also available.


Q:What's your delivery time?
Ususlly 7-10 working days,if the order is large,the time should be longer.

Q: What’s the advantage compared to other suppliers?
A:We are a Industry and trade company,there isn't any link between customers,so we can offer competitive price for you.


Contact me

6501


Price

  • Delivery Port : Shanghai,Qingdao

Packaging & Delivery

  • Packing :1 SET per wooden case
  • Packaging Size : 166 x 66 x 156  Centimeters
  • Package Weight : 210  Kilograms
  • Delivery Lead Time : 15 days after recieving paymnent

Product Image

  • Honey Moisture Removal Machine  0.5 - 1.5 Tons Honey Processing Machine image
