Quick Information

  • Brand Name: SANYUANTANG
  • Place of Origin: China
  • Model Number : SYT
  • Material : Rubber
  • Material Feature : Heat Resistant
  • Structure : Belt Conveyor
  • Belt material : PVC, food grade

Description

Food Industry Rubber Belt Conveyor With Sidewall For Powder / Granule

Belt conveyor video,please click on https://youtu.be/4O51nfrQtoI

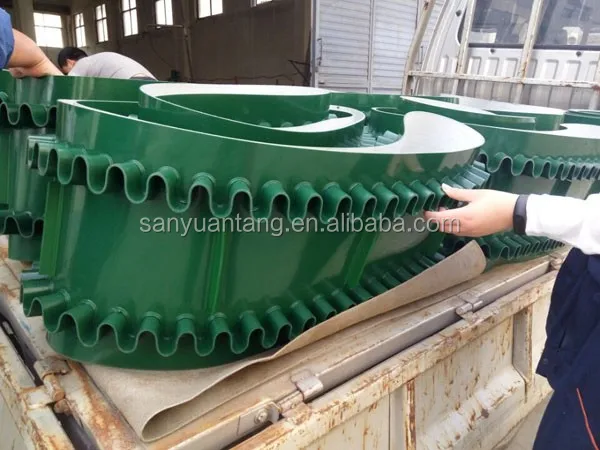

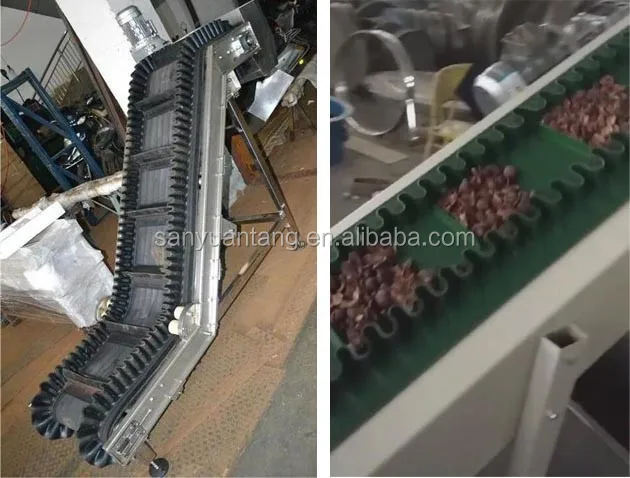

1.Sidewall Rubber Belt Conveyor is gluing freely retractable rubber waveform vertical "skirt" on both sides of flat-shaped rubber conveyor belt ,and sticking with a certain strength and elasticity of the crossbeam between the skirts to composite box shaped bucket, so that the material is continuously transported in the bucket.
Conveying angle is 0 ~ 90 ° (70 °or less is best), Currently, belt width of Z-shape conveyor we mainly produce are: B500, B650, B800, B1000, B1200, B1400, B1600.

2.Belt conveyor is widely used in metallurgy, coal, transport , water, electricity, chemical and other sectors , because it has a LARGE capacity , simple structure, easy maintenance , low cost , versatility , etc.

belt conveyor.jpg

Instruction of the used conveyor belt:

The belt conveyor is a kind of friction drive transport material continuously machine . Mainly made of the rack, conveyor belts , idlers , rollers, tensioning device, and gear .

It can be in a certain line , the feed point from the initial to the final discharge point formed a process of delivery of materials . It not only can deliver  granular material but also can deliver pieces of goods . Besides this,it can be combined with the process in the industrial production line and form the rhythmic flow transport line .



Technical data:

Belt Width

(mm)

Belt Length(m) / Power(kw)

Belt Speed

(m/s)

400

≤12/1.5

12-20/2.2

20-25/3

0.8-2

500

≤12/3

12-20/4

20-30/5.5

0.8-2

650

≤12/4

12-20/5.5

20-30/7.5

0.8-2

800

≤10/4

10-15/5.5

15-25/7.5

1.0-2

1000

≤10/5.5

10-20/7.5

20-25/11

1.0-2

1200

≤10/7.5

10-20/11

20-25/15

1.0-2



Note: The technical parameters above are just for your reference. If there is any change, all parameters and overall dimension are subject to operating instructions. Any questions please feel free to contact us.


Photos

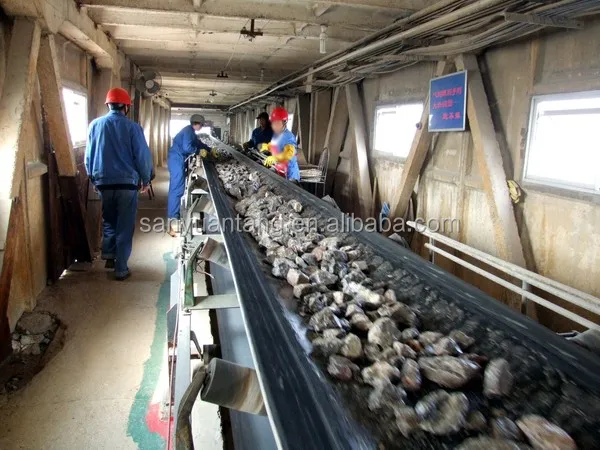

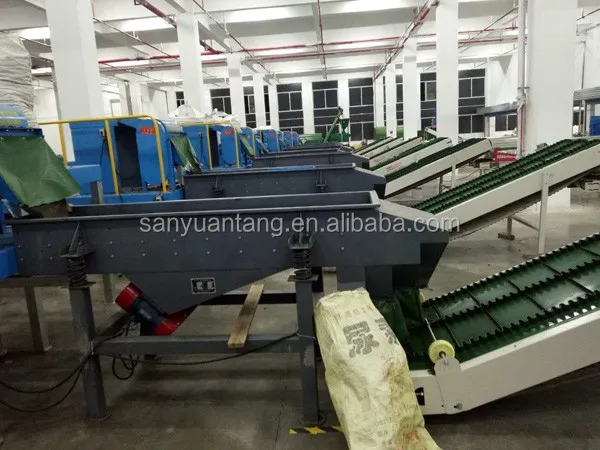

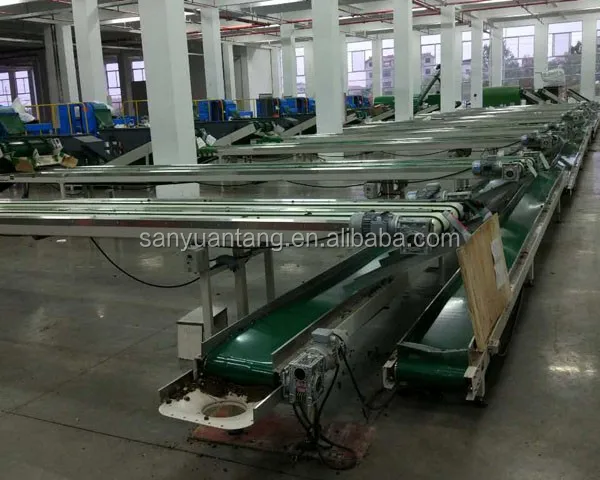

Belt conveyor equipment



















Related Products

 screw conveyor 4 bucket elevator 1 vibration conveyor 1

Company Information



To contact me get more details……

750-3


Price

  • Delivery Port : shanghai,tianjin,qingdao

Packaging & Delivery

  • Packing :wooden case
  • Packaging Size : 5000 x 650 x 1000  Millimeters
  • Package Weight : 380  Kilograms
  • Delivery Lead Time : 15 days after recieving payment

Product Image

  • Food Industry Rubber Belt Conveyor with Sidewall for Powder / Granule image
