Dolomite Powder / Quartz Sand Linear Vibrating Screener

Contact Now* Send an Inquiry to this supplier.
or
Start Order * Name your price

Browse by Category

Contact us

Xinxiang Sanyuantang Machine Co.,Ltd
[China]

Address
No.811, Qingnian Road, Qiliying Town Xinxiang Henan
Phone
86-182-38753173
Contact name
Amy Yin

Quick Information

  • Brand Name: SANYUANTANG
  • Place of Origin: China
  • Model Number : SYZ

Description

Dolomite Powder / Quartz Sand Linear Vibrating Screenerlinear vibrating screen 17.jpg

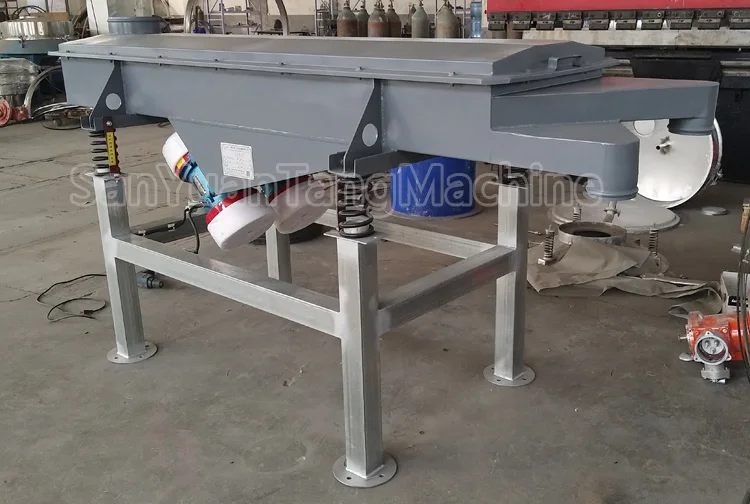

Description of Linear Vibrating Screen

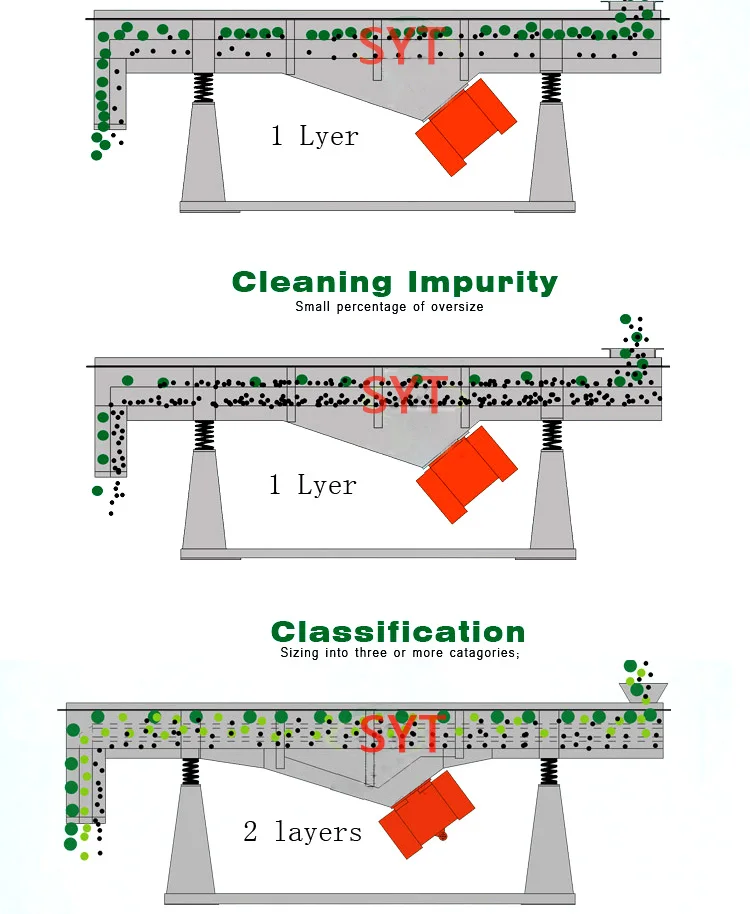

SYZ linear vibrating screen use excellent vibrating motor as power source,that the materials can be thrown up on the sieve and forward to make a straight movement. It can be equipped with single or multi-screen to achieve the grading, removing impurity, removing dust, testing,washing selecting,dehydration etc.

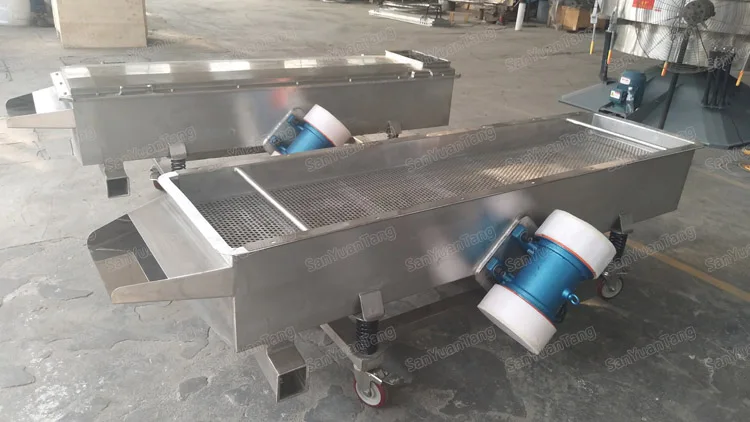

rectangular vibrating screen

rectangular vibrating screen

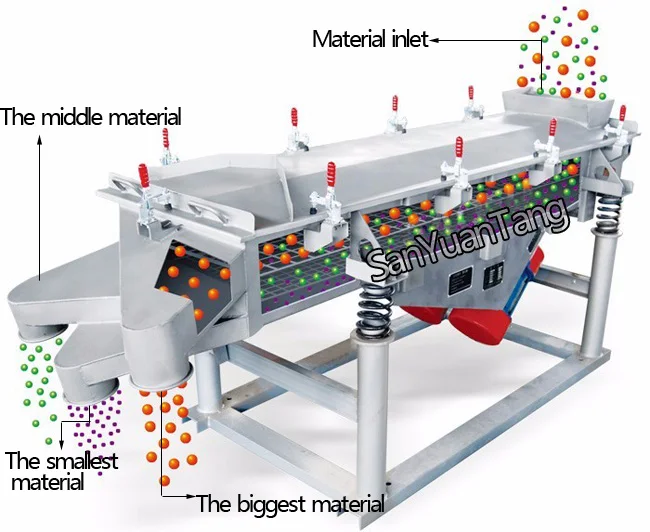

When the linear vibrating screen machine start to work, two vibration motors installed on the equipment work simultaneously but in reverse rotation. By the vibrating force and gravity, the materials are thrown up on the sieve and pushed forward to make a straight movement. Materials smaller than mesh size will pass and are collected to achieve the classification.



Technical Parameters——Linear Vibrating Screen

Model SYZ-520 SYZ-525 SYZ-530 SYZ-1020 SYZ-1025 SYZ-1030 SYZ-1225
Dimension (mm) 500×2000 500×2500 500×3000 1000×2000 1000×2500 1000×3000 1200×2500
Material  diameter (mm) 0.074-20 0.074-20 0.074-20 0.074-40 0.074-40 0.074-40 0.074-40
Shake  frequency(time/min) 960 960 960 960 960 960 960
Gradient 1-7 1-7 1-7 1-7 1-7 1-7 1-7
Amplitude 1-4.5 1-4.5 1-4.5 1-4.5 1-4.5 1-4.5 1-4.5
The layer number 1-6 1-6 1-6 1-6 1-6 11-6 1-6
Power(kw) 2×(0.37-0.75) 2×(0.37-0.75) 2×(0.37-0.75) 2×(0.75-1.1) 2×(0.75-1.5) 2×(0.75-1.5) 2×(0.75-1.5)

Application
 It is suitable for any dry material screening from 0.74mm-5mm., the largest particle size is 10mm.It is widely used in chemical, food, plastics, pharmaceuticals, metallurgy, glass, building materials, food, fertilizers, abrasives, ceramics and other industries.
 1) Chemical industry: resin pigment, medicine, grease, paint, palette, etc.      2) Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry, etc.      3) Food industry:sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.    4) Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.   5) Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.      6) Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder, etc.
industrial sieve shaker machinelinear vibrating sieve 3

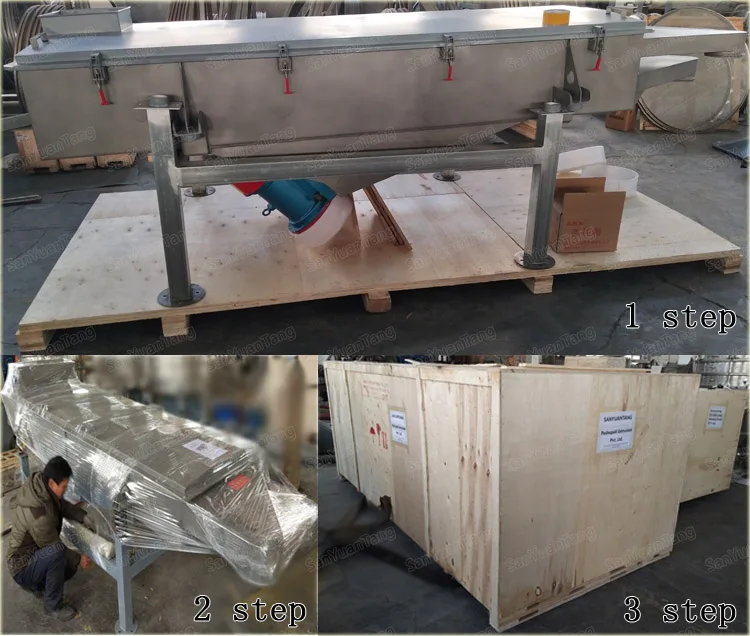

Packaging & Shipping

1.Machine Packing:
Our machine uses export standard wooden packing for our customers.
2. Machine Shipping:
We usually ship machines for our customers with the following modes:
1). by sea 2). by air 3). by express 4). by train
3. Delivery time:
We will delivery your machines in 5-10days after received 100% of the whole payment.

linear vibrating screen 13


Company Information

      Xinxiang city Sanyuantang Machinery Co.,Ltd, ISO9001 certified enterprise,    specializes in manufacturing series of vibrating screen and vibrating machine and we could design, develop and produce by ourselves.

      At present, the main range of products include kinds of series of Vibrating screens, Vibrating separator-filter,   Ultrasonic vibrating screens, Sifting machines, Filtering machines, Linear vibrating screen, Lab test sieve shakers, Vibrating conveyers, Cooling conveyor etc.

        These products are highly suitable to the purpose of screening grains and powders and filtering serous fluids. Other uses include the sifting and sorting dry powders, liquids and solids in industries such as Chemicals, Food processing, Pharmaceuticals, Metallurgy, pigments, Ceramics and Abrasives, etc.  Our products have seven national patents. CE and ISO certification.The quality and technology of our products have reached the international advanced standard.

honors

exhibbition

client


FAQ
How to choose a machine?
a: Customers who are familiar with technical performance and parameters can directly order.
Note: You had better send us the pictures you have ever used.
b: Customers who need us to choose the models, please follow the information, tell us:
Name and feature of the raw material?
Aim of using: get rid of impurity, filtration, grading?
Handling capacity: kg /h, L/h
The raw material size: (mesh or mm)
How many final materials you want, or how many layer you need?
Note: You had better send us the relevant pictures about the details.
2.How many kinds of material are supported?
All stainless steel (304, 316L)
All carbon steel Q235
Contact part Stainless steel
3.Is it special requirement available?
Packaging & Delivery:
Packing:Outer packing is plywood case, which is up to the international standard. Inner packing is moisture-proof and water-proof
membrane. All of packages are wrapped by 0.5mm steel belt to further strengthen, which can ensure machine safe during shipping.
Shipment:10-15 working days after receiving your payment.
This machine also could be customized by clients' specific production line requirement.

Related suggestion

products list 1


Our Services

All produts purchased in our company are guaranteed to keep in good repair for one year. If quality problems happen in guarantee period, our company will maintain for free.

a, Before sending the machine, we will test and adjust, so you can use directly when you get it.
b, Operation video & instruction will be sent to clients, to help them use the machines better.


Additionally, our company provides technical support and fittings for life. After-sales service isn't restricted by time and we will solve your problems in time. If you are caught in some problems when using our products, welcome to contact us at any time.

a, Any problems occur while using, professional advice will be offered.

b, All kinds of frequently used parts are supplied all the year round.

c, 24 hours hot line +86-18238753173




Buying Guides

How could you choose suitable one? Please answer the following questions.

The proper selection of the vibrating screen depends on the material, mesh size, output required, method of input etc:
1. Name of material: _____
2. Moisture:_____%
3. Specific gravity:_____
4. Capacity:________kg/ hour
5. Screen layer:_______
6. Screen mesh size:______ mesh . ______ mesh. ______ mesh
7. Voltage:______V, Frequency:______HZ, 3 phase
8. SS304/316L stainless steel or Q235A carbon steel?

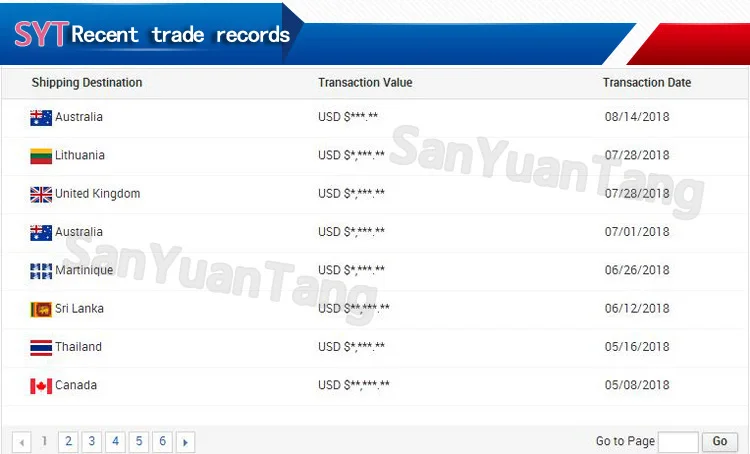

trade

--------------------Please contact me

750-3


Price

  • Delivery Port : shanghai,tianjin,qingdao

Packaging & Delivery

  • Packing :wooden case
  • Delivery Lead Time : 15 days after revieving payment
  • Supply Ability : 20 sets
